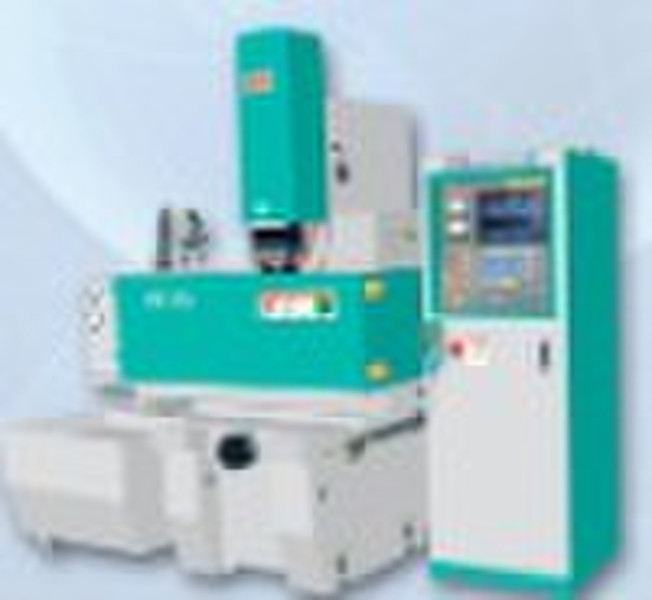

Mould forging Equipment SW-ZNC-430

welcome to visit our website,the specification data ofMould forging Equipment SW-ZNC-430 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip. SW-ZNC-430 Features: 1.Machine body structure with advanced castings of resin sand stress relieving. 2.Adopt precision CAD design and high precision frame structure. 3.X,Y axles movement surface with "TURCITE" and ball screw. 4.X,Y axles are made up V-shape and plane structure,ensuring the precision life of mechanical. 5.Adopt Japan SANYO DC servo motor,linear bearing and high strength and precision of integral castings. 6.Using high frequency induction hardening heating treatment. 7.The table is precision grinded work table. 8.Adopting centrifugal high pressure oil pump of WALRUS and 10u filter system. 9.The machine castings adopt resin sand which the grade is above 250. 10.The castingsare stress relieving cast iron. 11.The desktop uses high frequency quenching. 12.X,Y axles adopt the screw nuts of "model steel" which is produced by Taiwan.That may install ball screw optionally. 13.With functions of large area process and deep holes process. 14.Import accessories including electrode tip,automatic fire extinguisher,lamps,hand pull pump,page switch,gasket and centimeter bring up competitive machine tools. Functions: 1.Intelligent compile:depending on experience or input electric current and depth of processing. 2.Sectioned automatically from thick to thin.The steps which may complete the processingat one timefrom thick→middle→thin to sleek. 3.Setting copper pairs with steel,graphite pairs with steel and copper pairs with hard alloy according to the electrodes and materials. 4.Multiple set selections to process the thin slice and large-sized workpieces. 5.Anti-carbon automaticallydetection. 6.Fire-prevention and liquid level control automatically. 7.Translating between Chinese and English,metric and imperial. 8.Conform to the CE safety standard of power box. Specifications: Machine Type MeasureSW-430Working table's size(length×width)mm650×350Left-to-right travel(X axle)mm400Front-to-back travel(Y axle)mm300Spindle travel(Z axle)mm200+200The distance from the spindle's under-face to working tablemm180-580Oil tank chamber(length×width×height)mm1050×640×450Oil box appearance size(length×width×height)mm900×900×480Max electrode weightkg70Working table's bearing capabilitykg500Machine's net weightkg2000 Power Supply Unit Current/Type Max machining rate Min electrode wear rate Optimal surface accuracy Max input power 60A 400 0.3 0.3 5KVA 90A 800 0.3 0.3 8KVA Accessories Model Standard Accessories Optional Accessories SW-ZNC-430 Permanent-magnet chuck Precise orbital head Special fire extinguisher ER special clamp Electrode tip Clamping sets 3 Axis optical scale Filter net Quartzwork lamp Toolbox
